Resistors for Hi-End Audio

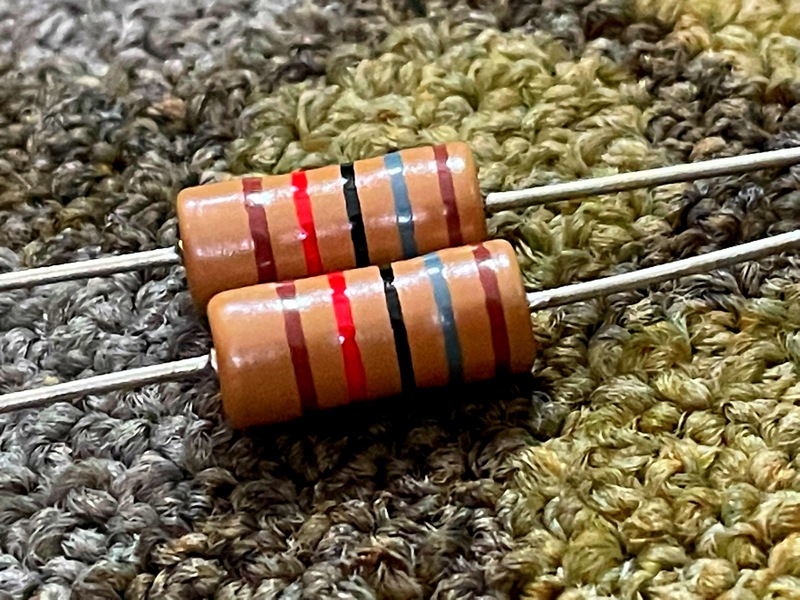

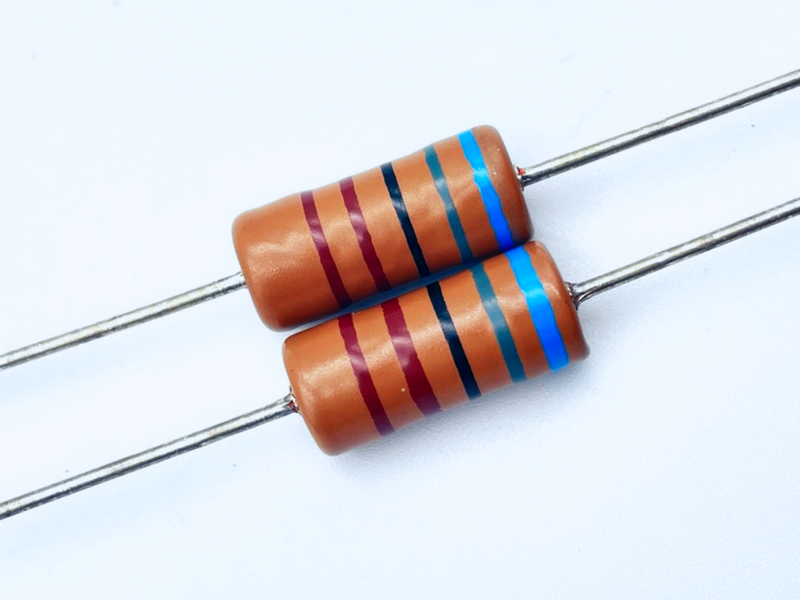

Audio Note Tantalum
Current Stock of AN Tantalum
Tantalum 2W:
33R, 100R, 220R, 270R, 470R, 1K, 1K2, 1K5, 2K, 2K2, 2K7, 3K3, 4K7, 5K6, 6K8, 10K, 15K, 20K, 22K, 24K, 27K, 30K, 33K, 39K, 43K, 47K, 56K, 62K, 68K, 82K, 100K
Tantalum 1W:
22R, 82R, 100R, 330R, 470R, 560R, 604R, 680R, 1K, 1K2, 1K5, 2K, 2K2, 2K7, 3K3, 3K9, 4K7, 5K6, 6K8, 10K, 11K, 15K, 20K, 22K, 27K, 33K, 39K, 43K, 47K, 68K, 82K, 100K, 150K, 180K, 220K, 270K, 330K, 470K, 750K, 820K, 1M, 2M
Tantalum 1/2W:
10R, 47R, 56R, 75R, 100R, 110R, 150R, 220R, 249R, 270R, 294R, 330R, 390R, 470R, 560R, 600R, 1K, 1K2, 1K5, 1K8, 2K, 2K2, 2K7, 3K3, 4K7, 5K1, 5K6, 6K8, 8K2, 10K, 12K, 15K, 18K, 22K, 24K, 27K, 30K, 33K, 47K, 51K, 56K, 62K, 75K, 82K, 100K, 150K, 180K, 220K, 270K, 300K, 330K, 430K, 470K, 560K, 680K, 750K, 820K, 1M, 1M5
Tantalum Non-Magnetic 1/2W:
10R, 16R, 22R, 32R, 47R, 100R, 132R, 220R, 330R, 470R, 680R, 1K, 1K2, 1K5, 2K2, 3K3, 4K7, 5K56, 6K8, 10K, 15K, 18K9, 22K, 33K, 47K, 56K, 68K, 100K, 120K, 150K, 220K, 270K, 330K, 470K, 560K, 1M
Tantalum Non-Magnetic 1W:
22R, 100R, 220R, 470R, 1K, 1K2, 1K5, 2K2, 10K, 15K, 22K, 33K, 39K, 47K, 68K, 100K, 150K, 220K, 330K, 470K, 560K, 1M
Tantalum Non-Magnetic 2W :
100R, 470R, 1K, 1K5, 22K, 27K, 33K, 47K, 68K, 100K
Tantalum Silver Non-Magnetic 2W: The best hi-end audio resistors in the market!
100R, 220R, 390R, 470R, 1K, 1K2, 1K5, 3K3, 10K, 15K, 22K, 27K, 33K, 39K, 47K, 56K, 68K, 100K, 150K, 220K, 270K

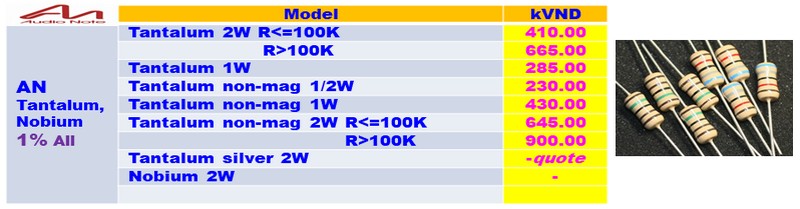

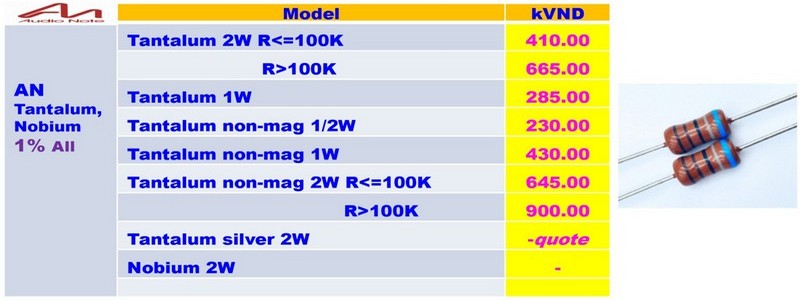

DxHmm |
US$ each |
1000 VND each |
|
---|---|---|---|
AN Tantalum 2W R<=100KOhm |
- |
14.90 |
330 |
AN Tantalum 2W R>100KOhm |
- |
24.50 |
540 |
AN Tantalum 1W |
- |
10.50 |
230 |
AN Tantalum 1/2W |
- |
5.20 |
115 |
AN Tantalum Non-Magnetic 1/2W |
- |
8.20 |
180 |
AN Tantalum Non-Magnetic 1W |
- |
15.5 |
340 |
AN Tantalum Non-Magnetic 2W R<100KOhm |
- |
23.00 |
510 |
AN Tantalum Non-Magnetic 2W R>100KOhm |
- |
32.50 |
720 |
AN Tantalum Silver 2W Non-Magnetic |
- |
54.00 |
1200 |
*** Price for ONE resistor

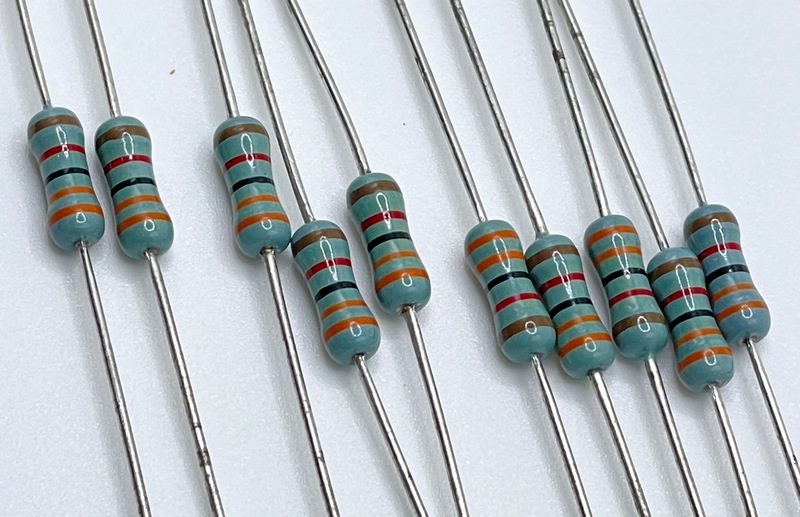

Audio Note Tantalum
These exotic resistors from Japan, sound less dry than the metal films and they do not emphasize any particular frequency range. They sound more natural, more musical.
They work equally well in semiconductor and tube amplifiers. Most customers, who have tried the tantalums, say that they would never go back to the common metalfilm type resistors. Please note that the Audio Note tantalums are not actually Shinkoh manufactured (no longer in business) but are from a second source, these, however share many aspects of the original Shinkoh`s. These have a 1% tolerance.

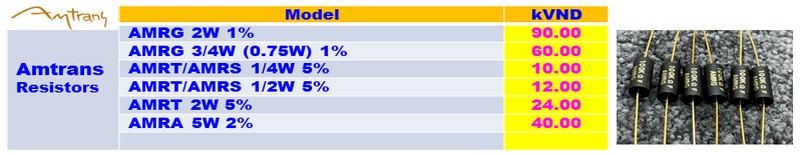

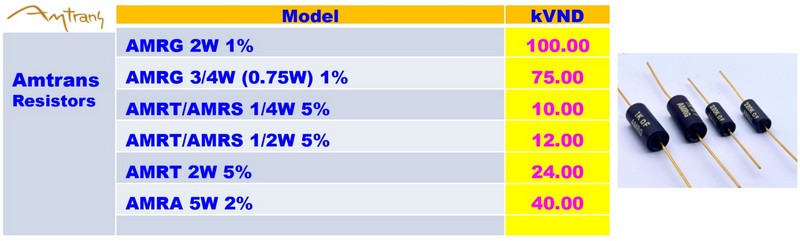

DIYAUDIO-VN is Official Authorized Distributor of Amtrans Japan, the Carbon Film Resistors AMRG for Hi-End Audio

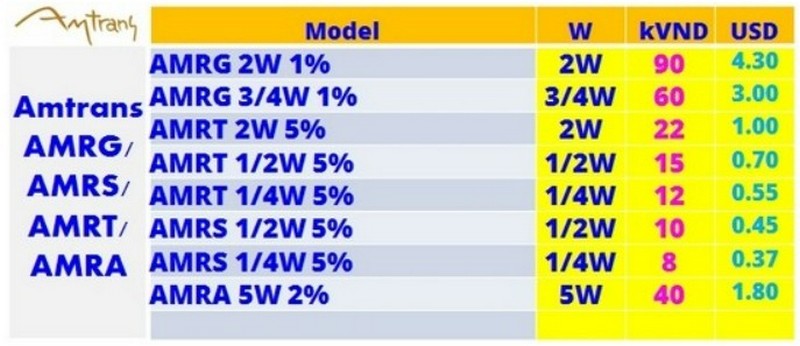

DxHmm |
US$ each |
1000 VND each |
|
---|---|---|---|
Amtrans AMRG 2W 1% |
- |
4.50 |
90 |
Amtrans AMRG 3/4W 1% |
- |
3.00 |
60 |
AMRS 1/2W 5% |
- |
0.50 |
10 |
AMRS 1/4W 5% |
- |
0.40 |
8 |
AMRT 1/4W 5% |
- |
0.50 |
10 |
AMRA 5W 2% |
- |
1.80 |
40 |

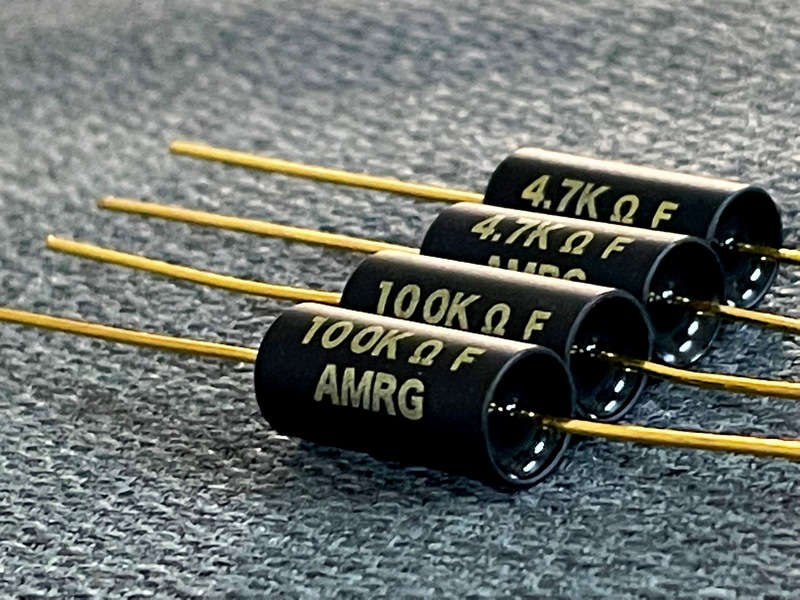

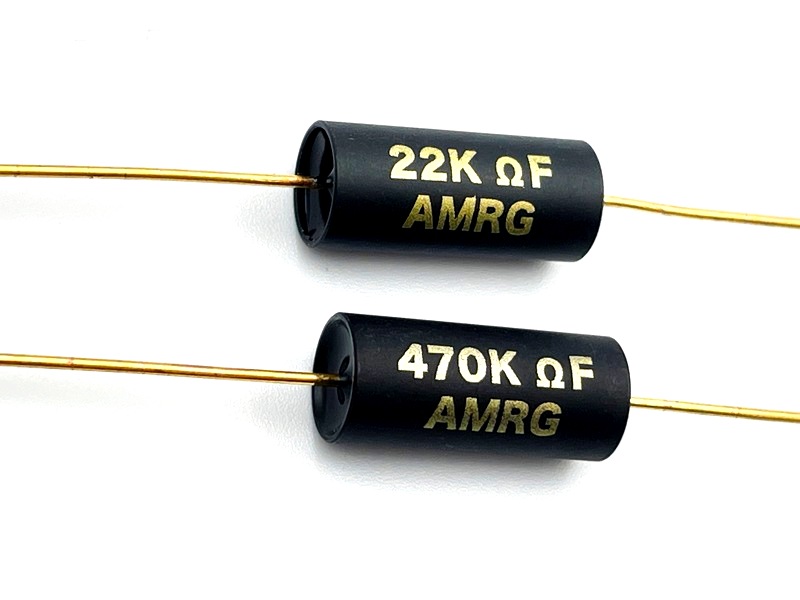

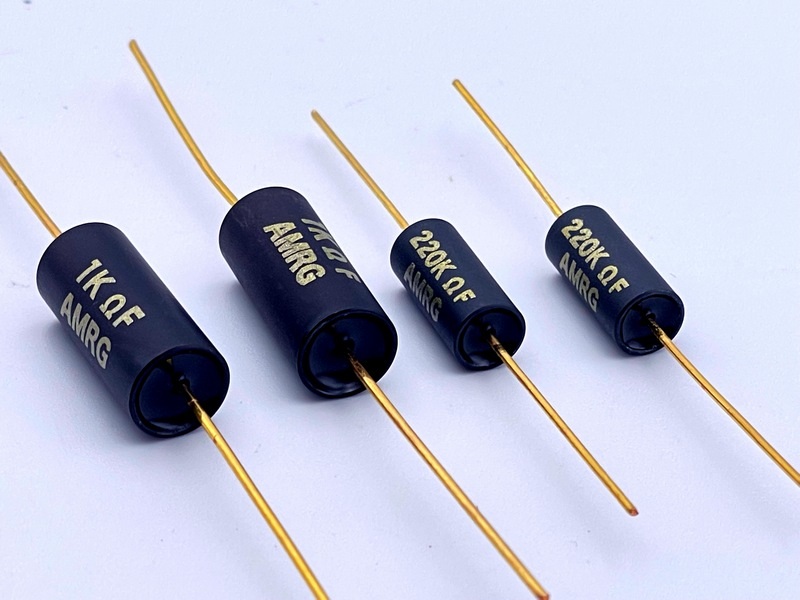

Amtrans AMRG Carbon Film Resistors 2W & 3/4W
18R, 47R, 56R, 68R, 100R, 120R, 220R, 270R, 330R, 470R, 560R, 680R, 1K, 1K2, 1K5, 2K2, 2K7, 3K3, 4K7, 6K8, 10K, 15K, 18K, 22K, 27K, 33K, 43K, 47K, 51K, 56K, 68K, 82K, 100K, 120K, 150K, 180K, 220K, 270K, 330K, 390K, 470K, 1M
AMRG 3/4W Carbon Film 1%
10R, 15R, 33R, 47R, 68R, 82R, 100R, 180R, 220R, 270R, 330R, 470R, 560R, 620R, 680R, 750R, 1K, 1K2, 1K5, 2K, 2K2, 2K7, 3K3, 4K7, 6K2, 6K8, 8K2, 10K, 15K, 20K, 22K, 24K, 27K, 33K, 43K, 51K, 62K, 68K, 82K, 100K, 150K, 180K, 220K, 270K, 330K, 470K, 680K, 1M

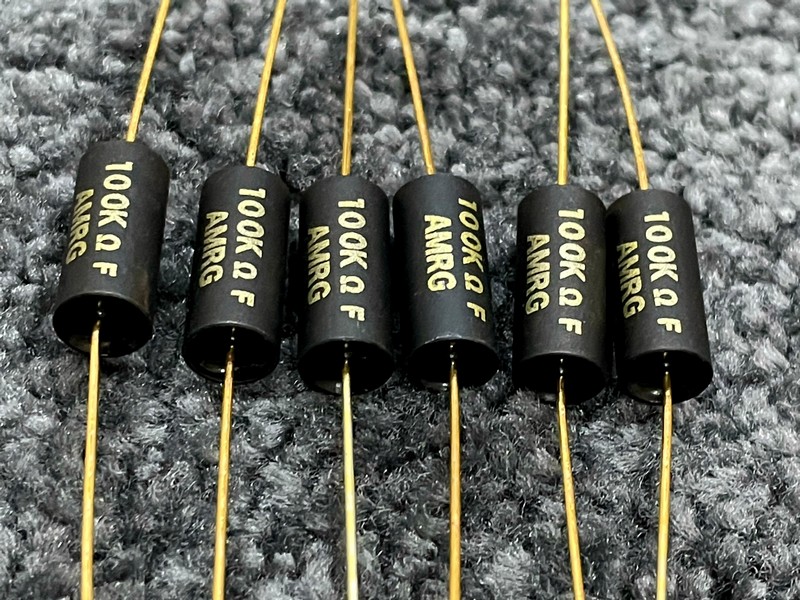

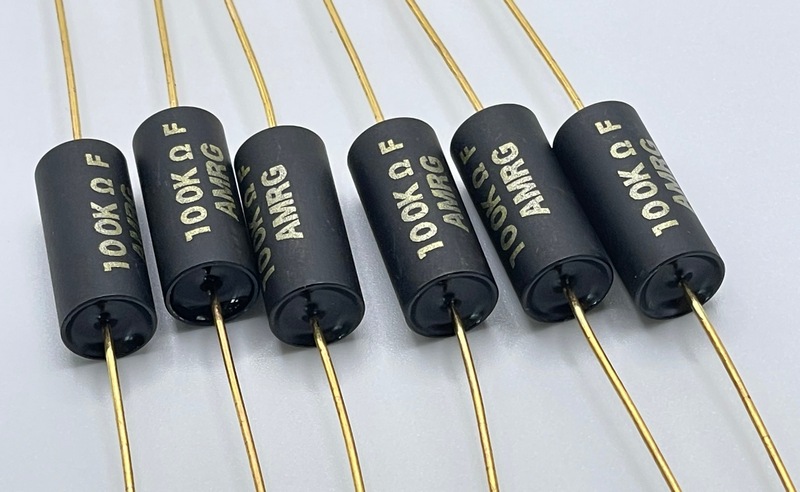

Amtrans AMRG Carbon Film Resistors 2W & 3/4W
Since the demise of the beloved Riken Ohm carbon film resistors back in 2005/6, with their destinctive blue body, colour code bands and gold plated copper leadouts there hasn`t been a serious contendor to rival them. Until now...
Amtrans, from Japan, used to be the distributor for Riken resistors. In 2005 they bought a resistor factory, whether this was the original Riken premises they wouldn`t confirm. Soon came the AMRG carbon film resistor, which they claim is better than the Riken as they have employed cutting edge technologies for production. Indeed they aren`t far from the truth they are truely amazing.
They are available in 0.75 watt and 2 watt, from 10R to 1.5M in E24 values. we are now stocking the E12 range but will increase the range to E24 in 2011. They have a 1% tolerance, non-magnetic , they are encapsulated in a black anodized aluminum case, potted in a highly thermal conductive resin, gold-plated copper end caps and gold-plated oxygen free copper leadouts. A lot to boast we believe and at an incredible price.
Characteritics:
- power rating: 3/4 Watt & 2 Watt
- Nominal resistance: E24 sereies, 10R and above
- Tolerance: +/- 1%
- Max working voltage: 350V (3/4W), 500V (2W)
- Operating temperature: -55 to +155 degrees C
- Ceramic base: Porcelain rod (alumina)
- Resistor film: High quality carbon film
- End caps: Cupped plated brass
- Lead wire: Gold plated oxygen free copper wire
- Potting: Hightly thermal conductive resin
- Casing: Anodised Aluminium
***Technical Data AMRG_e.pdf

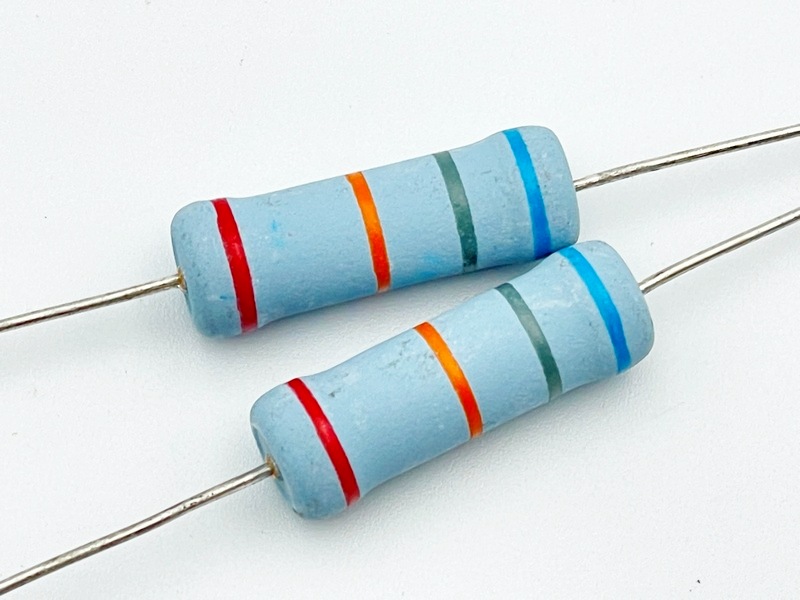

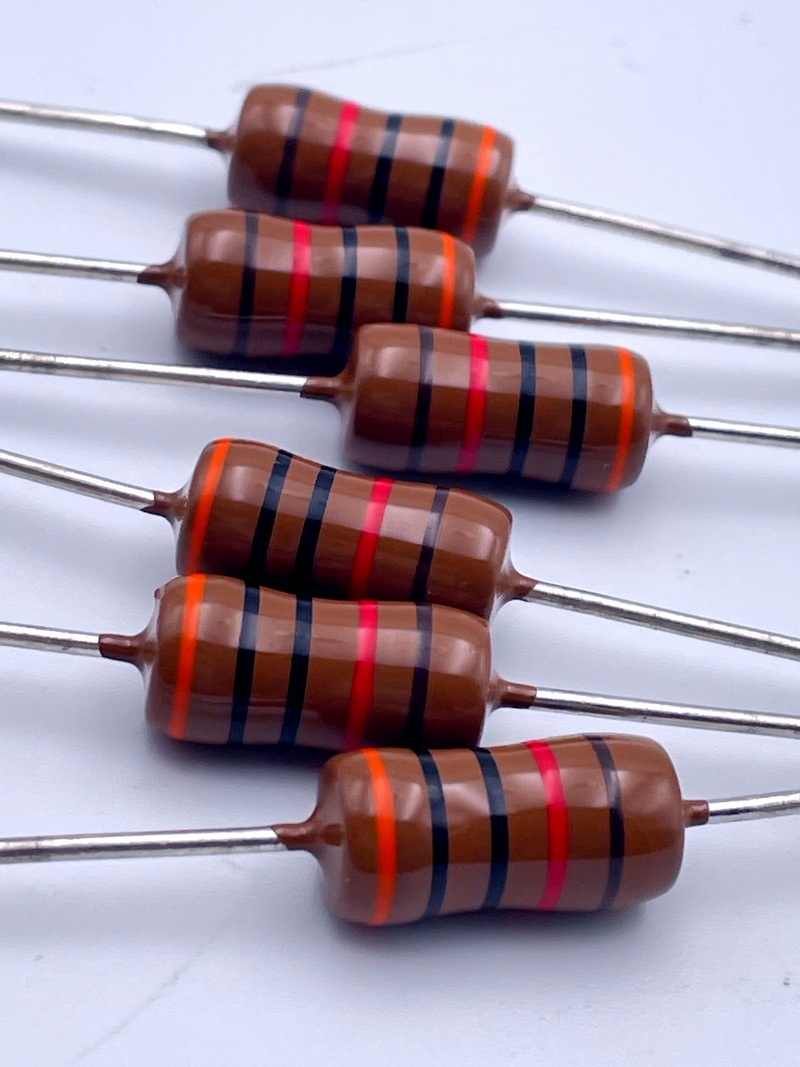

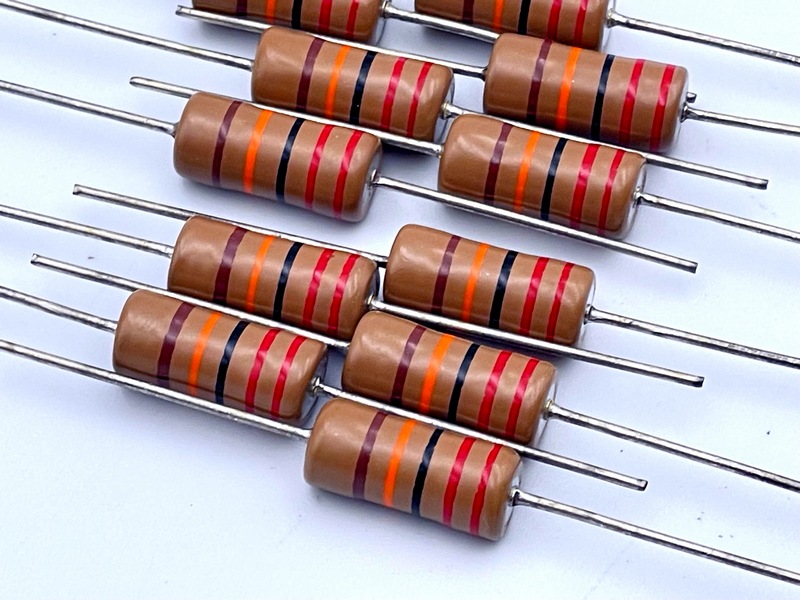

Amtrans AMRT 2W 5% carbon film: The world first batch of AMRT 2W resistrors

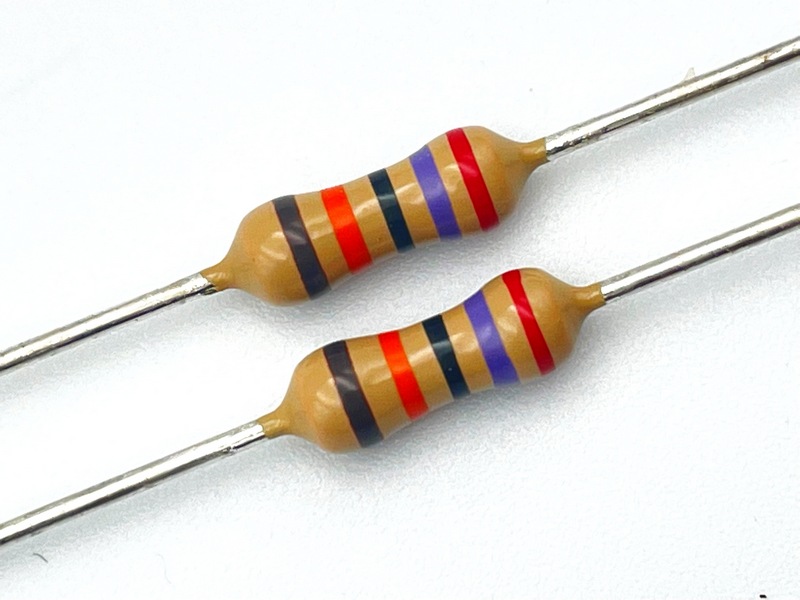

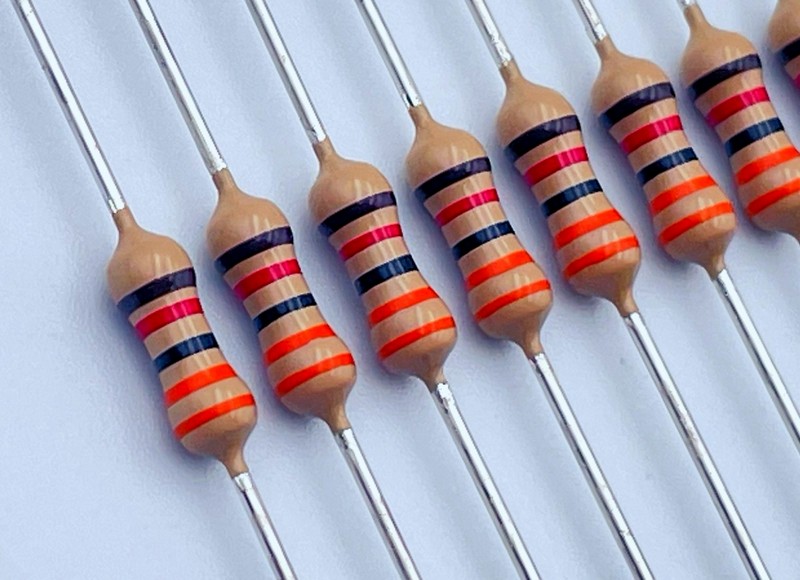

Amtrans AMRS Carbon Film Resistors 1/2W, 1/4W
Current Stock:
AMRS & AMRT 1/2W Carbon Film 5%
10R, 20R, 47R, 75R, 82R, 100R, 110R, 120R, 150R, 220R*, 270R, 330R*, 390R, 470R, 560R, 680R, 820R, 1K, 1K2*, 1K5, 2K, 2K2*, 2K7, 3K3, 3K6, 3K9, 4K7, 5K6, 6K8, 10K*, 12K*, 15K, 18K, 20K, 22K, 27K, 33K, 47K, 68K, 82K, 100K, 100K, 120K, 150K, 220K, 270K, 330K, 470K, 1M, 1M
AMRS & AMRT 1/4W Carbon Film 5%
10R, 18R, 30R, 33R, 36R, 47R, 68R, 75R, 100R, 100R, 110R, 150R, 150R, 180R, 200R, 200R, 300R, 300R, 330R, 360R, 390R, 430R, 470R, 470R, 510R, 560R, 560R, 620R, 620R, 680R, 680R, 750R, 820R, 820R, 1K*, 1K1, 1K2, 1K3, 1K3, 1K5, 1K6, 1K6, 1K8, 2K, 2K, 2K4, 2K7, 2K7, 3K, 3K3, 3K3, 4K3, 4K3, 4K7, 5K1, 5K1, 6K2, 6K2, 7K5, 8K2, 8K2, 10K, 13K, 13K, 15K, 16K, 16K, 18K, 20K, 22K, 22K, 24K, 24K, 27K, 30K, 33K, 33K, 39K, 43K, 47K, 47K, 51K, 56K, 62K, 68K, 68K, 75K, 82K, 91K, 100K, 100K, 150K, 180K, 200K, 220K, 240K, 270K*, 330K, 390K, 470K*, 560K, 1M
AMRT 2W
100R, 470R, 1K, 1K2, 1K5, 2K2, 4K7, 6K8, 10K, 15K, 22K, 27K, 33K, 47K, 68K, 82K, 100K, 150K, 220K, 270K, 330K, 470K, 1M

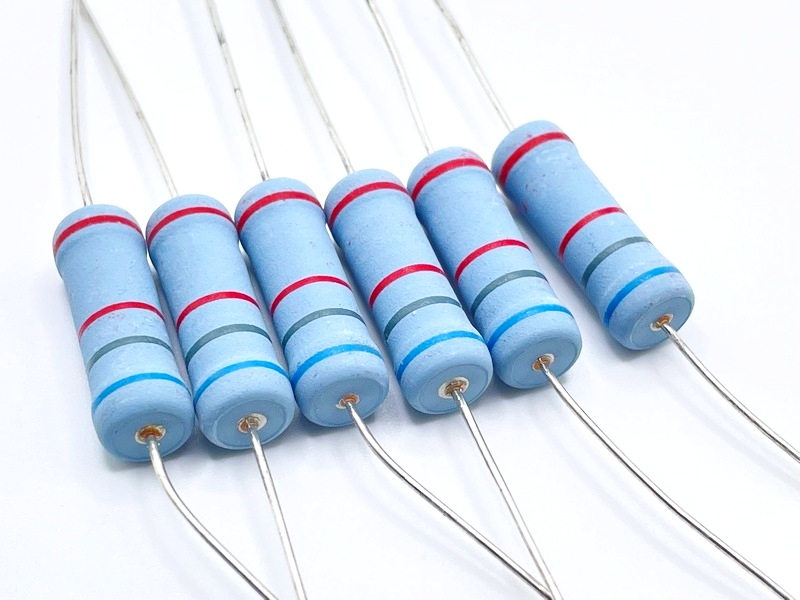

Amtrans AMRA Metal Oxide Resistors 5W
In response to our customer demands, we has finally been able to source a range of premium "audio-grade" 2-Watt and 5-watt metal oxide resistors. These Japanese-made parts, are robustly made, conservatively designed, 2% tolerance, featuring non-magnetic construction, and RoHS compliant, solder-coated OFHC copper leads. They offer audio constructors an economical, "no worry" alternative, for both power supply and more cost conscious audio applications.
***Technical Data AMRA_e.pdf
AMRA 5W
0R22, 0R47, 0R68, 10R, 47R, 100R, 270R, 470R, 1K, 1K2, 1K5, 2K2, 4K7, 6K8, 8K2, 10K, 12K, 15K, 22K, 27K, 33K, 47K, 68K, 82K, 100K
Duelund Standard Graphite Resistors
Duelund Coherent Audio are widely acknowledged for designing and manufacturing the world’s finest capacitors, inductors, resistors and cables. Their resistors are specifically designed for loudspeaker crossover use. Constructed from a graphite rod with silver terminals in a phenolic cylinder for protection. They have practically zero inductance, with a 5% tolerance. The special charcteristic about this resistor is that it displays a negative temperature coefficient. For example, when the voice coil of a speaker heats up, it's impedance rises. The DUELUND Graphite Resistor counteracts this by means of a decreasing impedance. The results are greatly improved dynamics from the driver.
Dimensions:
Diameter = 8mm, length = 65mm to 135mm.

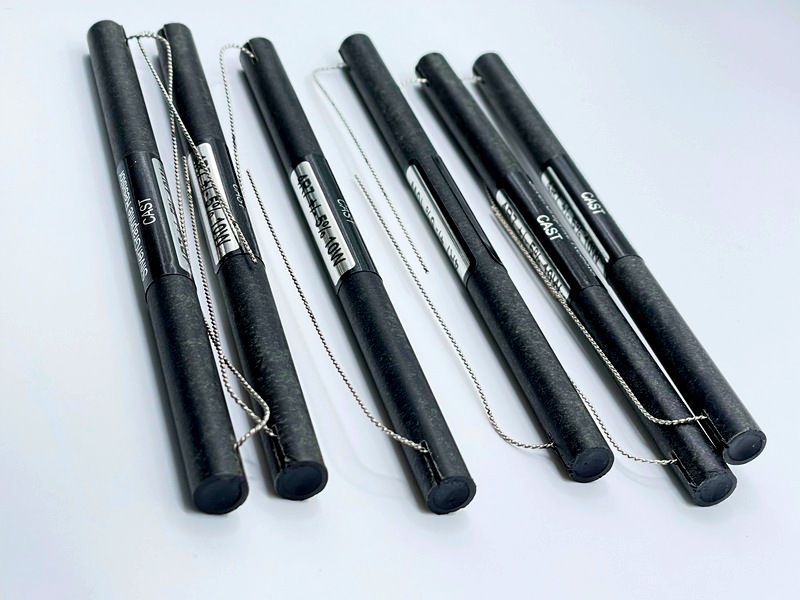

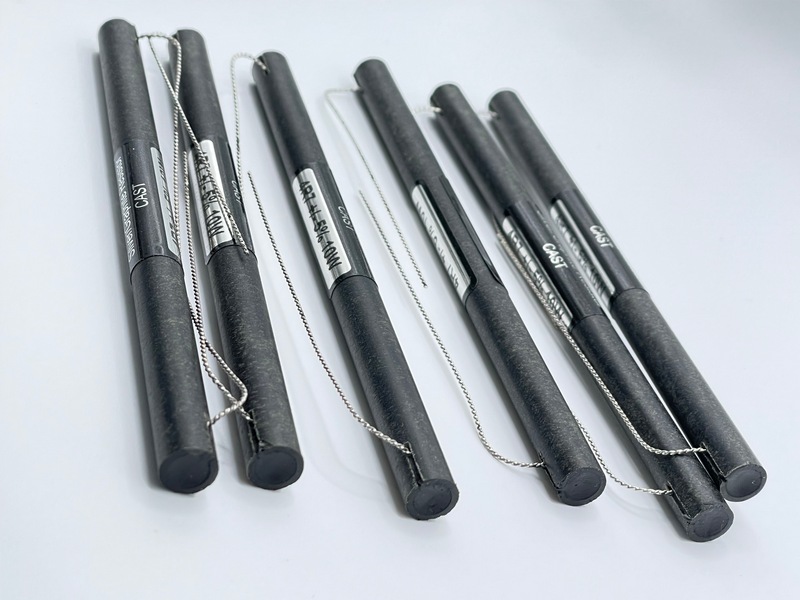

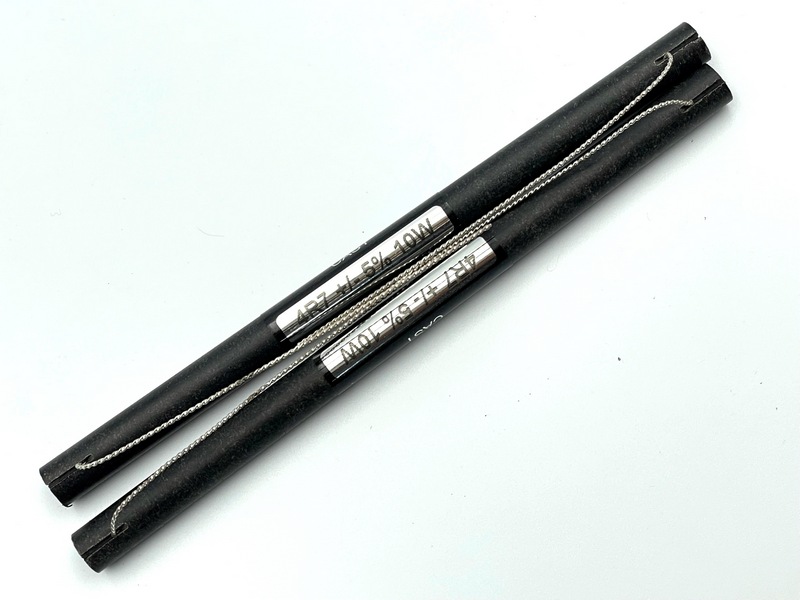

Duelund CAST Silver Resistors
DUELUND CAST Silver 10W: 0R5, 1R, 1R5, 2R2, 3R3, 3R9, 4R7, 6R8, 10R, 15R, 20R, 30R, 33R
New from DUELUND, a step up from their standard resistors are their amazing CAST resistors. Constructed from a graphite rod with silver terminals in a phenolic cylinder for protection, using a high temperature epoxy, both as a cavity-fill within the cylinder, and to encapsulate the graphite element. This gives each part incredible mechanical stability, and incredible damping properties. They have practically zero inductance, with a 5% tolerance.The special charcteristic about this resistor is that it displays a negative temperature coefficient. For example, when the voice coil of a speaker heats up, it's impedance rises. The DUELUND Graphite Resistor counteracts this by means of a decreasing impedance. The results are greatly improved dynamics from the driver.
Dimensions:
Diameter = 8mm, length = 65mm to 135mm.

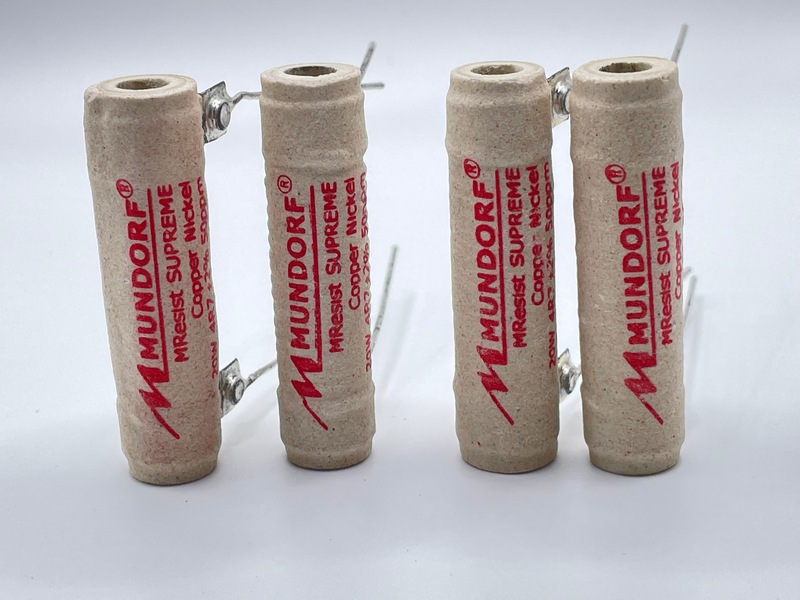

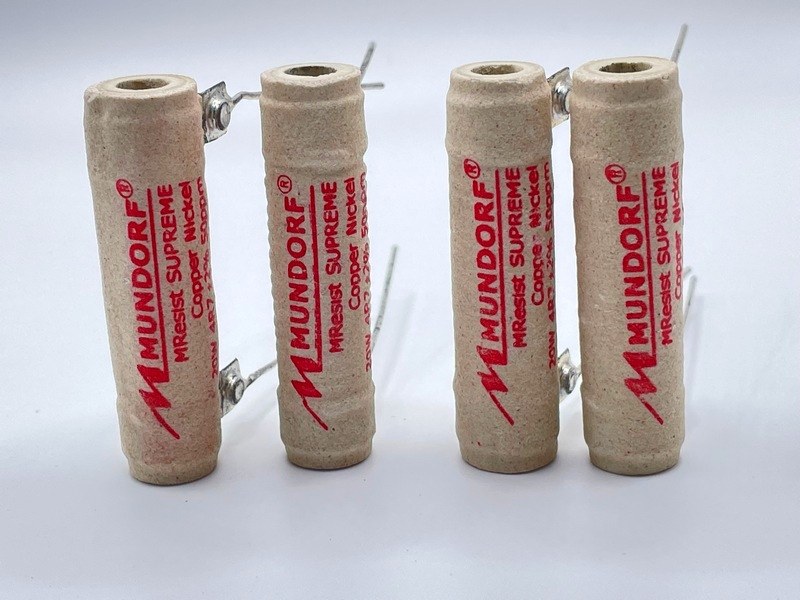

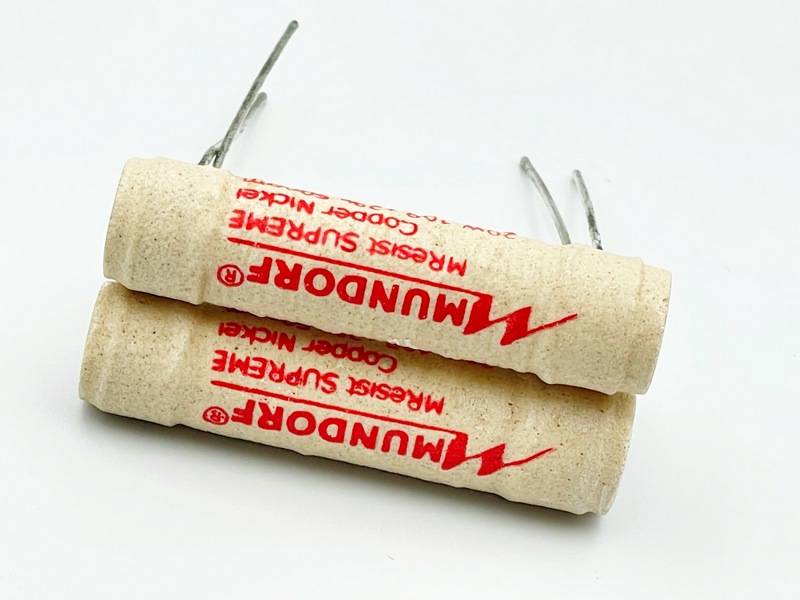

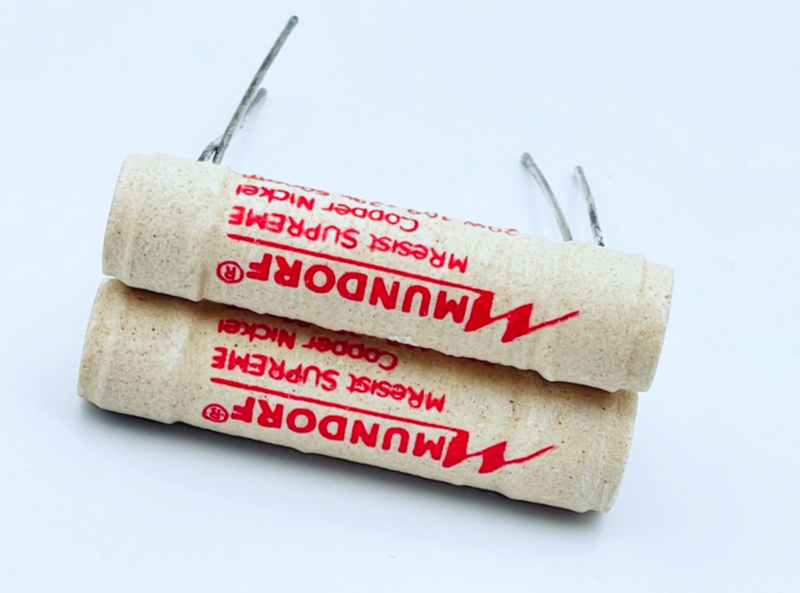

MResist Supreme non-inductive 20W resistors

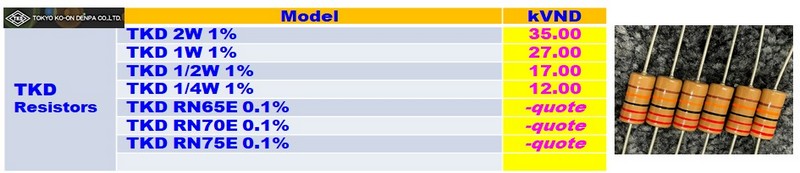

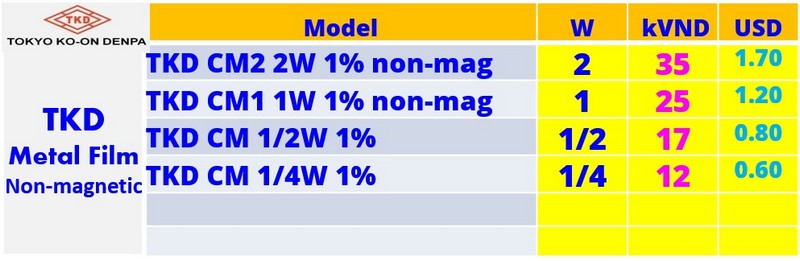

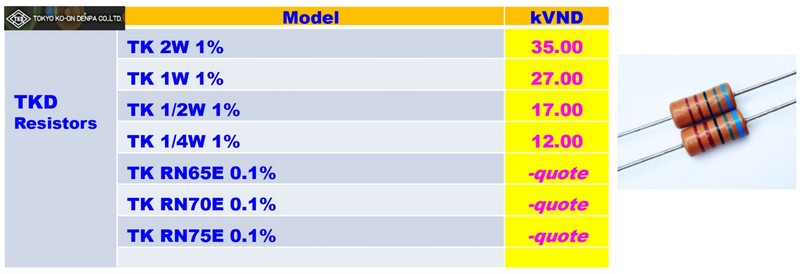

TKD Metal Film Resistors 2W & 1W
Non-Magnetic, OFHC copper lead, for Audio resistors
DxHmm |
US$ each |
1000 VND each |
|
---|---|---|---|
CM2 2W 1% Non-Magnetic |
- |
1.70 |
35 |
CM1 1W 1% Non-Magnetic |
- |
1.20 |
25 |
TKD CM2 2W 1% Metal Film Non-Magnetic
10R, 33R, 47R, 100R, 220R, 270R, 330R, 470R, 560R, 680R, 820R, 1K, 1K2, 1K5, 1K8, 2K, 2K2, 2K4, 2K7, 3K3, 3K9, 4K7, 5K6, 6K8, 8K2, 10K, 12K, 15K, 18K, 20K, 22K, 24K, 27K, 30K, 33K, 39K, 43K, 47K, 51K, 56K, 62K, 68K, 82K, 100K, 120K, 150K, 180K, 220K, 270K, 330K, 390K, 470K, 560K, 1M, 1M2, 1M5
TKD CM1 1W 1% Metal Film Non-Magnetic10R, 47R, 100R, 150R, 180R, 220R, 270R, 330R, 390R, 470R, 560R, 620R, 680R, 820R, 1K, 1K2, 1K5, 1K8, 2K, 2K2, 2K7, 3K, 3K3, 3K9, 4K7, 5K1, 5K6, 6K8, 8K2, 10K, 12K, 15K, 18K, 20K, 22K, 24K, 27K, 30K, 33K, 39K, 43K, 47K, 51K, 56K, 62K, 68K, 82K, 100K, 120K, 150K, 180K, 200K, 220K, 240K, 270K, 300K, 330K, 470K, 510K, 560K, 680K, 820K, 1M

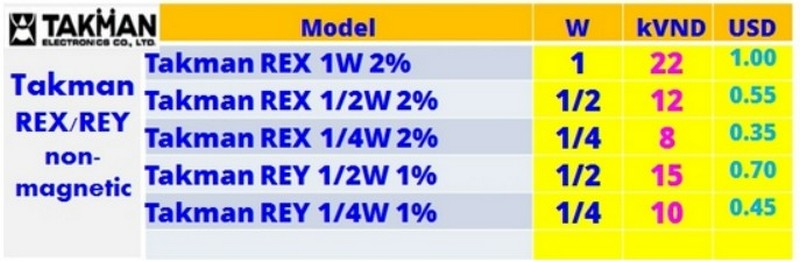

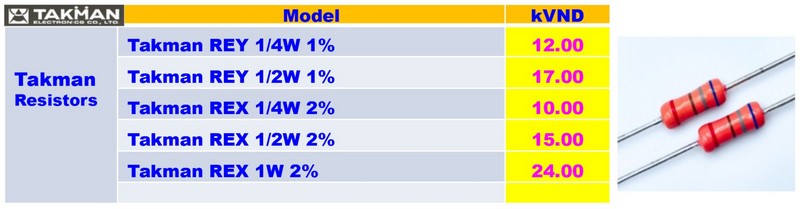

DxHmm |
US$ each |
1000 VND each |
|
---|---|---|---|
Takman REX 1W 2% |
- |
1.0 |
22 |
Takman REY 1/2W 1% |
- |
0.75 |
15 |
Takman REY 1/4W 1% |
- |
0.5 |
10 |
Takman REX 1/4W 2% |
- |
0.4 |
8 |
10R, 100R, 220R, 270R, 330R, 470R, 560R, 680R, 820R, 1K, 1K2, 1K5, 2K2, 2K7, 3K3, 4K7, 5K6, 6K8, 8K2, 10K, 15K, 18K, 22K, 27K, 33K, 39K, 47K, 68K, 82K, 100K, 120K, 150K, 220K, 270K, 330K, 470K, 1M
27R, 47R, 68R, 100R*, 220R, 270R, 470R, 560R, 680R, 1K*, 2K2, 2K67, 2K7, 4K7, 10K, 15K, 20K, 22K, 24K9, 27K, 33K, 43K, 47K, 56K, 62K, 68K, 82K,100K, 150K, 220K, 240K, 330K, 470K, 560K, 1M*

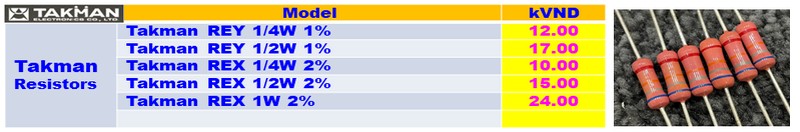

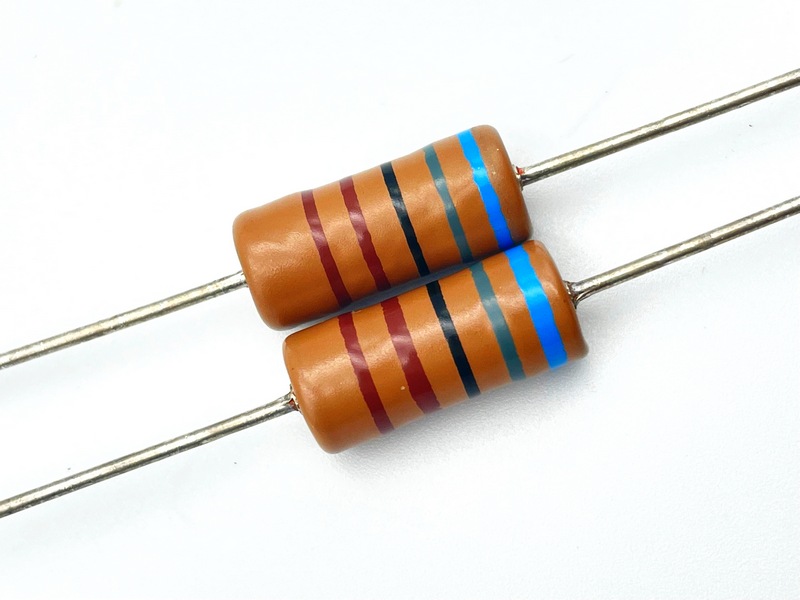

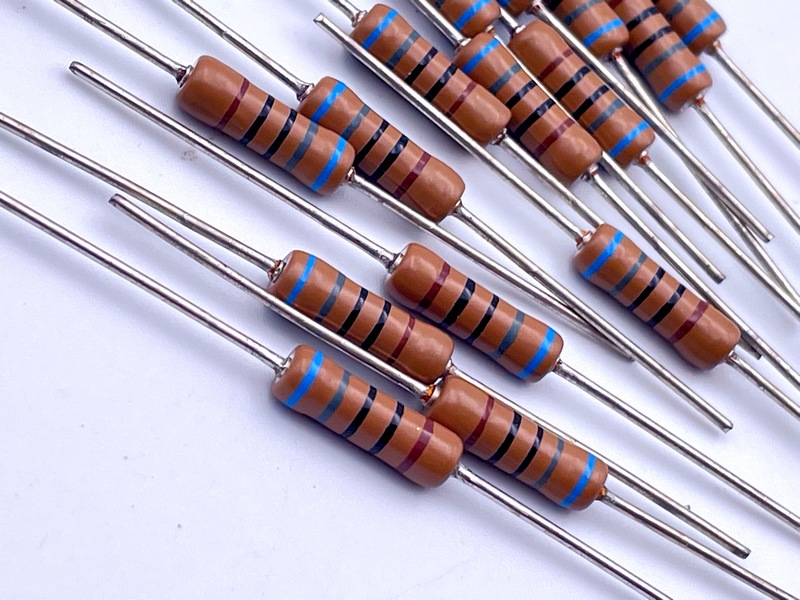

Takman Carbon Films
This is just what the DIY community has been waiting for. TAKMAN, Japan, have developed a truly supreme carbon film resistor, specifically developed for Audio. we are proud to be the stockist of the full E-24 range of both the 0.25W and 0.5W, plus the full E12 range of the 1W resistors.
TAKMAN resistors are already extremely popular in manufactured hi-fi, their notoriety excelerated by their amazing natural tonality and clean detailing.
During development, TAKMAN recognised how sound is influenced by the various structures and materials used in manufacture. Magnetism, inductance, electrification caused by contact resistance and vibration make the sound flat and coloured. Ultimately you will hear an edgy brightness at the highs but overall a lack of accuracy and detail. To remove these incidental noises TAKMAN developed their first audio grade resistor, the MAESTRO, the predecessor to the REX (carbon film) and the REY (metal film). With outstanding specifications, TAKMAN, by making the best of their know-how and sophisticated technology of a resistor-specialized manufacturer have created the best resistor for your audio equipment or circuits seeking for unlimited high-quality sound. So now you can enjoy the great intrinsic characteristics of carbon film resitors - natural and easy to listen to but with greater defined detail and impact. At a great price you will not be disappointed with these amazing gems.
Characteristics
- Low distortion
- Non-magnetic
- Brass end caps and oxygen free copper lead outs
- High tolerance (HFC stock the 2% range)
- High quality sound
***Technical Data REX.pdf

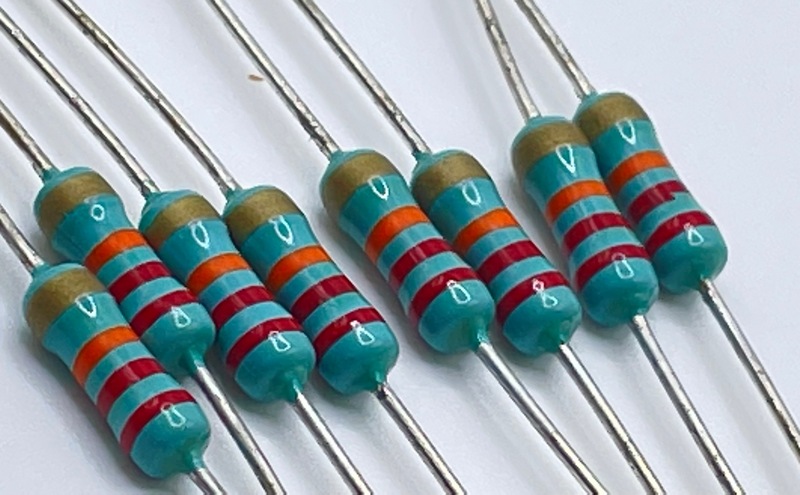

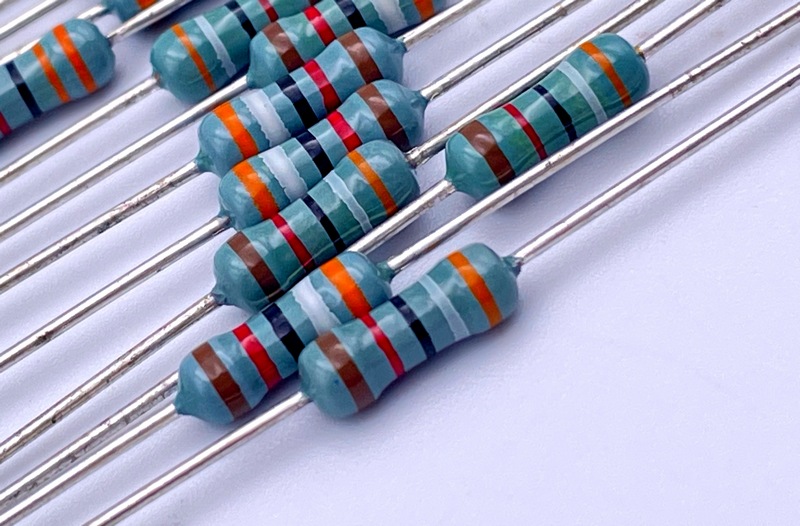

Takman 1/4W REY Metal Film 1%
2R2, 10R, 22R, 27R, 33R, 39R, 47R, 51R, 56R, 68R, 75R, 82R, 100R, 110R, 120R, 150R, 180R, 200R, 220R, 240R, 270R, 300R, 330R, 360R, 390R, 470R, 510R, 560R, 680R, 750R, 820R, 1K, 1K1, 1K2, 1K3, 1K5, 1K6, 1K8, 2K, 2K2, 2K4, 2K67, 2K7, 3K, 3K3, 3K9, 4K3, 4K7, 5K1, 5K6, 6K8, 7K5, 8K2, 10K, 12K, 13K, 15K, 16K5, 18K, 20K, 20K5, 22K, 24K, 24K9, 27K, 33K, 39K, 43K, 47K, 51K, 56K, 62K, 68K, 82K, 100K, 120K, 150K, 200K, 240K, 560K
Takman 1/2W REY Metal Film 1% Non-Magnetic
10R, 47R, 100R, 120R, 150R, 220R, 270R, 330R, 390R, 470R, , 560R, 680R, 750R, 820R, 1K, 1K2, 1K5, 1K8, 2K, 2K2, 2K7, 3K, 3K3, 4K7, 5K1, 6K8, 8K2, 10K, 12K, 15K, 18K, 22K, 27K, 33K, 39K, 47K, 51K, 68K, 82K, 100K, 120K, 150K, 200K
Takman Metal Films
Extending the range of the incredibly popular TAKMAN resistors from Japan, we are proud to be stocking the full E24 range of the REY25, 0.25W, REY50, 0.5W metal film, both at 1% tolerance metal film resistor. We also have the full E12 range of the REY75, 1W resistors. A thoroughly modern manufactured resistor designed specifically for Audio.
Takman REY metal film resistor for audio equipment has the features that it consists of resistor thin film made mainly of Ni-Cr-Al materials, brass caps and non-oxygen copper wire. High-precision is realized with laser trimming and high stability and high sound quality are achieved with most proper coating. This resistor is usable for any audio components.
During development, TAKMAN recognised how sound is influenced by the various structures and materials used in manufacture. Magnetism, inductance, electrification caused by contact resistance and vibration make the sound flat and coloured. Ultimately you will hear an edgy brightness at the highs but overall a lack of accuracy and detail. To remove these incidental noises TAKMAN developed their first audio grade resistor, the MAESTRO, the predecessor to the REX (carbon film) and the REY (metal film). With outstanding specifications, TAKMAN, by making the best of their know-how and sophisticated technology of a resistor-specialized manufacturer have created the best resistor for your audio equipment or circuits seeking for unlimited high-quality sound.
Specification:
- Low distortion
- Non-magnetic
- Brass end caps and oxygen free copper lead outs
- Precise resistance tolerance (HFC stock the 1% range)
- High reliablity
***Technical Data REY.pdf

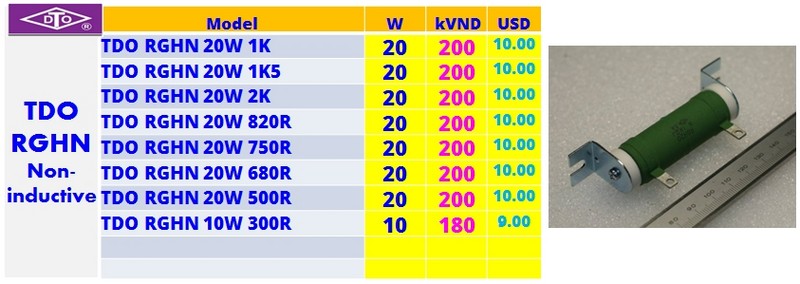

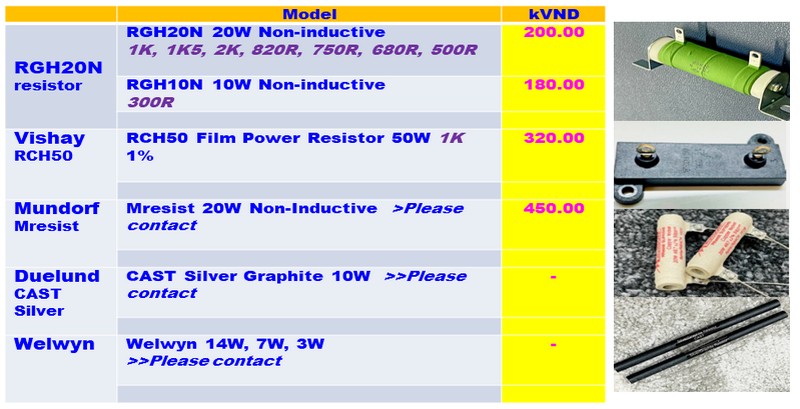

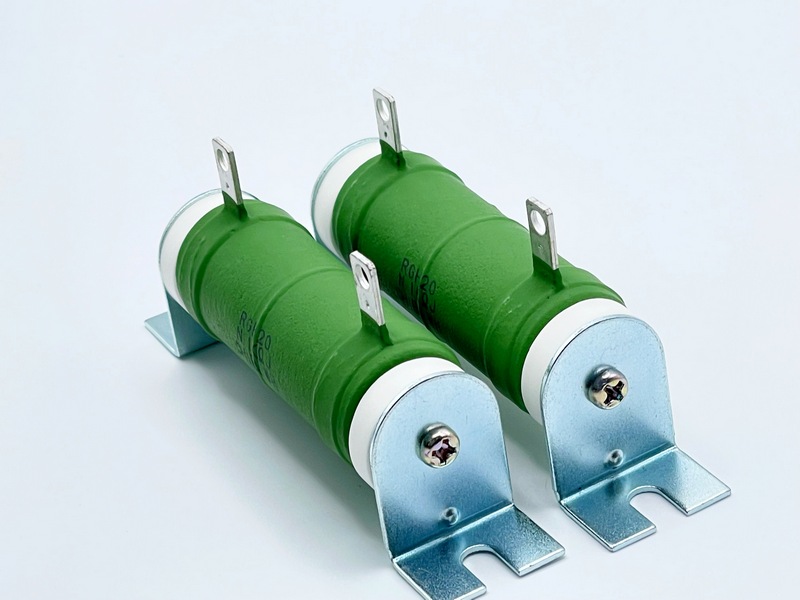

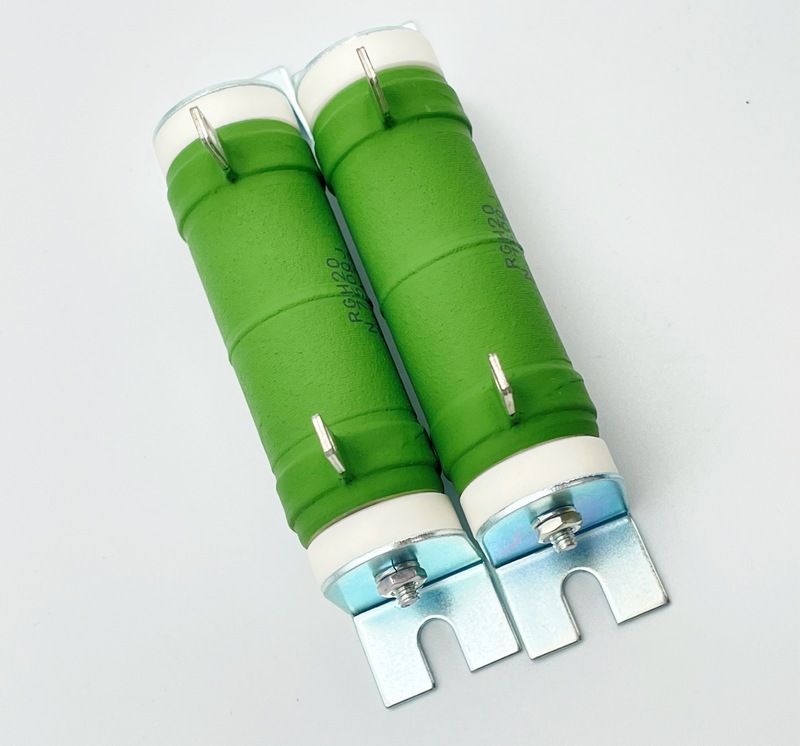

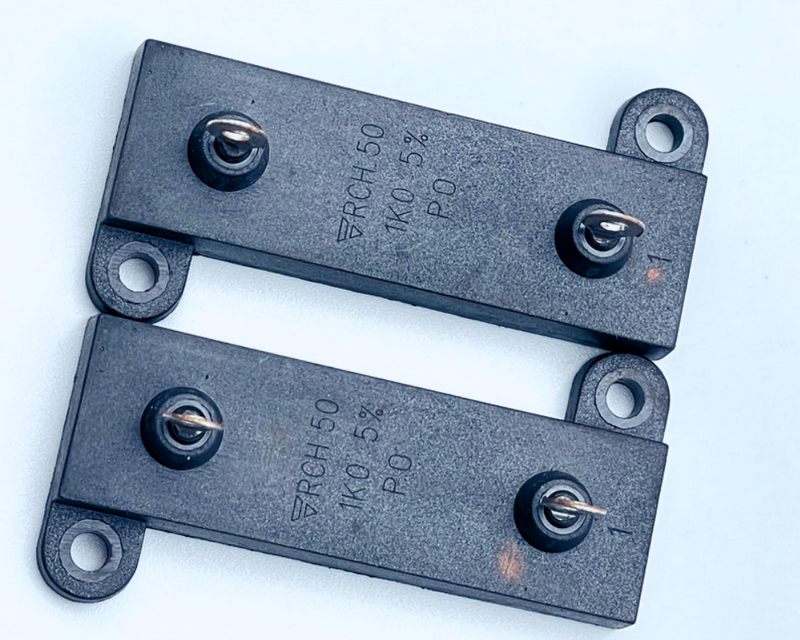

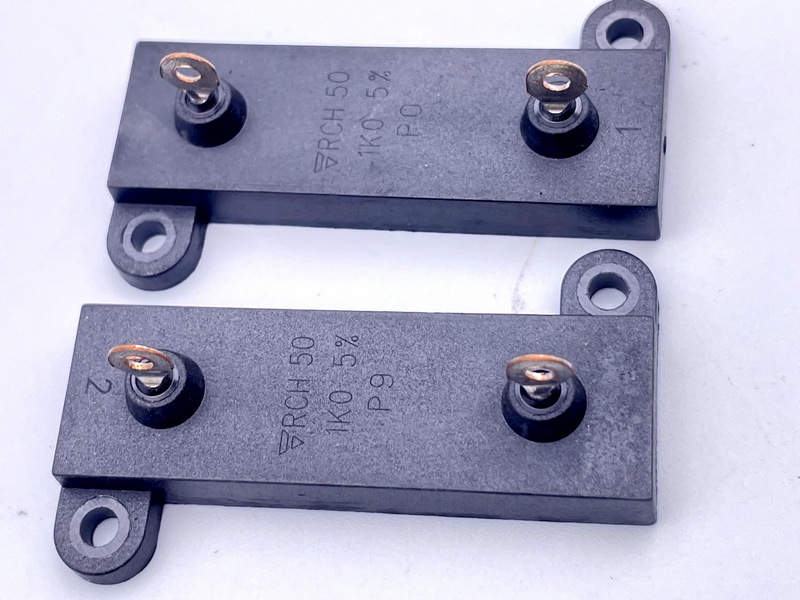

TDO Wirewound Non-Inductive Resistors RHA25N & RGH20N
DxHmm |
US$ each |
1000 VND each |
|
---|---|---|---|
RGH-N 20W Non-Inductive 500R, 680R, 750R, 820R, 1K, 1K5, 2K | - |
10 |
200 |
We have ready large stock of Vishay "Naked" Zfoil resistors for Khozmo Shunt Attenuators
WELWYN Wirewound Resistors W24, W23, W22, W21
